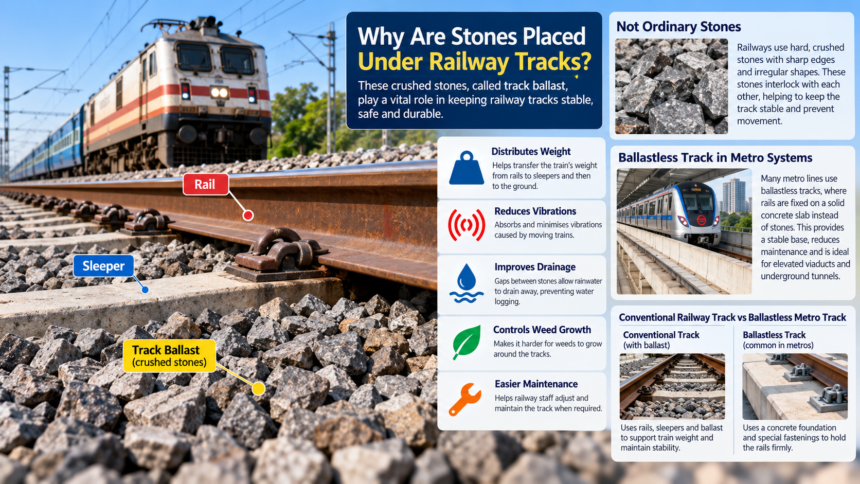

The stones visible beneath railway tracks are not placed there simply for appearance. Known as track ballast, these crushed stones play a vital role in keeping railway lines stable, supporting heavy trains and maintaining safe track conditions.
Trains place enormous loads on railway tracks as they move. To handle this pressure, rails are fixed to sleepers, which are usually made of concrete or wood and help maintain the correct distance between the rails. The ballast surrounding and supporting these sleepers transfers the load towards the ground and helps prevent the track from shifting.
The stones also help reduce vibrations caused by passing trains. Together, the rails, sleepers and ballast form a track structure designed to withstand repeated pressure and movement.
Why Do Railways Use Crushed Stones Instead of Ordinary Pebbles?
Railway ballast is generally made from hard, crushed stones of suitable sizes. Unlike smooth, rounded pebbles, these stones have rough surfaces, sharp edges and irregular shapes that help them fit together and resist movement.
As trains pass over the tracks, repeated loads and vibrations can cause the track structure to move. The interlocking arrangement of ballast stones helps keep sleepers in position and supports the overall stability of the railway line.
However, ballast can gradually shift, wear down or become less effective over time. Railway maintenance teams inspect the tracks regularly and adjust, clean or replace the stones when necessary to maintain safe operating conditions.
Five Important Benefits of Railway Track Ballast
Track ballast performs several functions beyond providing a foundation for railway sleepers.
1. Distributes the train’s weight: Ballast helps transfer the load from the rails through the sleepers and into the ground, reducing concentrated pressure on the supporting surface.
2. Reduces vibrations: The stones help absorb and dissipate some of the vibrations generated when trains travel over the tracks.
3. Allows rainwater to drain: The gaps between the stones provide pathways for water to flow away. Proper drainage helps prevent water from collecting around the sleepers and weakening the ground beneath the track.
4. Limits weed growth: Ballast can make it more difficult for weeds to establish themselves around railway tracks, although it does not eliminate weed growth completely.
5. Supports track maintenance: Railway workers can adjust the position and level of tracks by working with the sleepers and ballast. This makes routine maintenance and alignment corrections easier.
Although ballast helps manage vibrations, it does not completely eliminate railway noise. Noise levels depend on several factors, including train design, track construction and the sound-control measures used along the route.
Why Do Many Metro Trains Run Without Stones?
Many metro systems use a construction method known as a ballastless track. Instead of placing crushed stones beneath the sleepers or rails, engineers secure the rails to a concrete slab or another specially designed rigid foundation.
This arrangement provides a firm base and helps maintain precise rail alignment. It is particularly useful on elevated metro viaducts and inside underground tunnels, where structural design, available space and maintenance requirements are important considerations.
Ballastless tracks can also reduce maintenance work associated with loose stones, including the need to reposition or replace ballast. However, they are not used on every metro route. Some sections, particularly at ground level, may still use conventional tracks with ballast.
The choice depends on the engineering requirements and design of each line.
Conventional Railway Tracks vs Ballastless Metro Tracks
The difference between conventional railway tracks and many metro tracks goes beyond whether stones are present beneath the rails.
On conventional railway lines, the rails, sleepers and ballast work together to support train loads, maintain alignment and manage vibrations. In a ballastless system, a rigid concrete foundation and specialised rail-fastening equipment hold the rails securely in position.
Engineers select the appropriate design after considering factors such as train weight, operating speed, vibration, available space and whether the railway runs at ground level, on an elevated structure or through a tunnel.
Both systems are designed to provide safe and stable rail travel. The choice depends on the route’s operating conditions, construction requirements and long-term maintenance needs.
Disclaimer: This article is intended for general informational purposes and explains common railway track construction methods. Track designs and engineering requirements may vary depending on the railway line, operating conditions and applicable technical standards.
